Deskripsi Produk

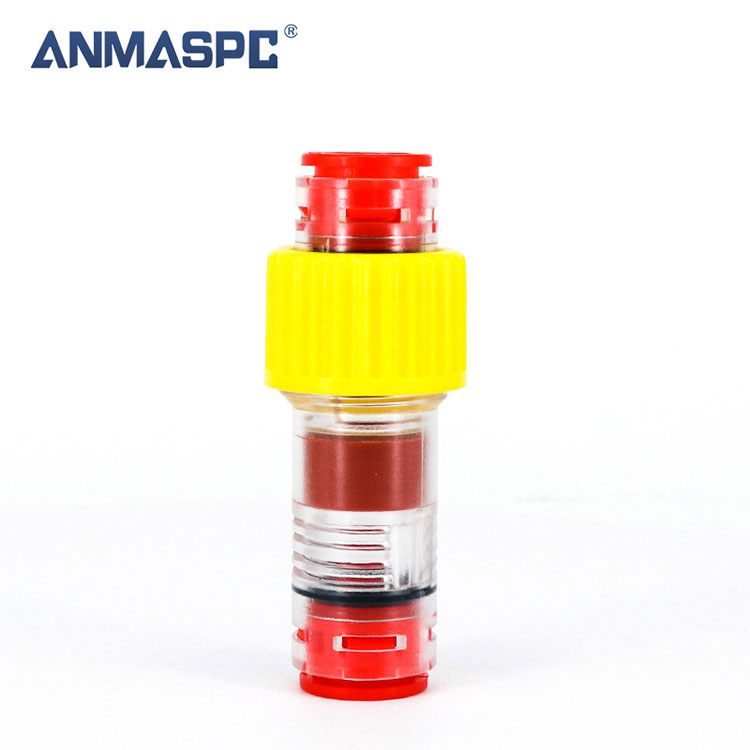

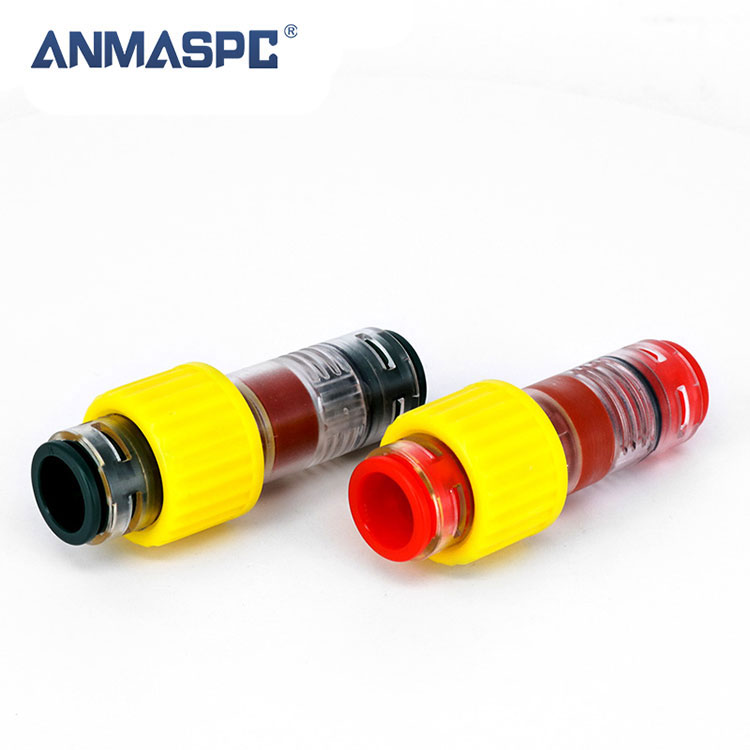

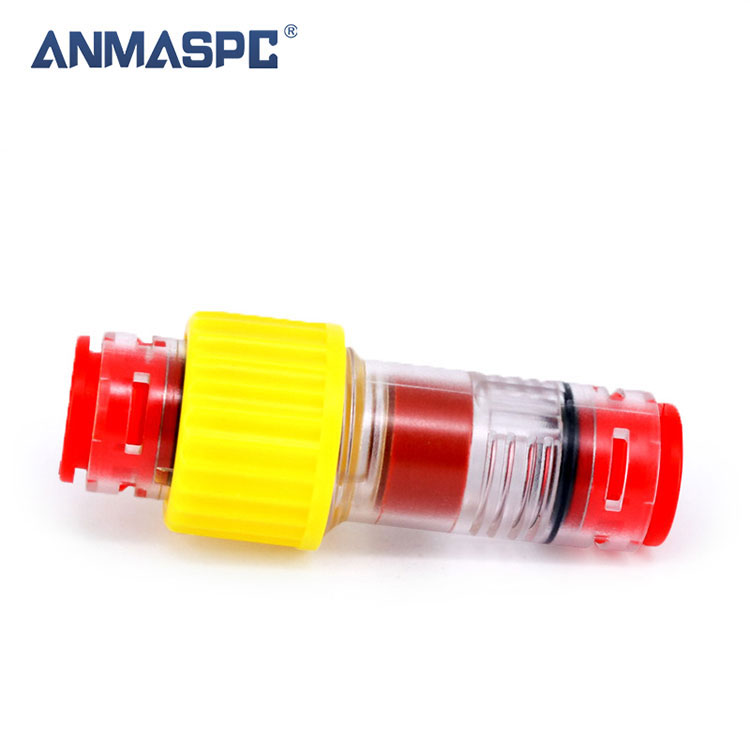

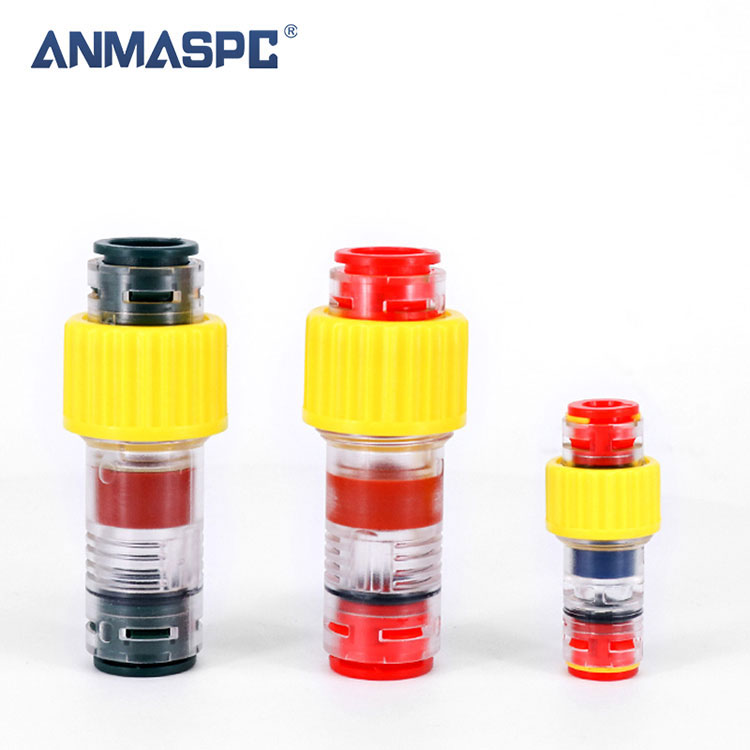

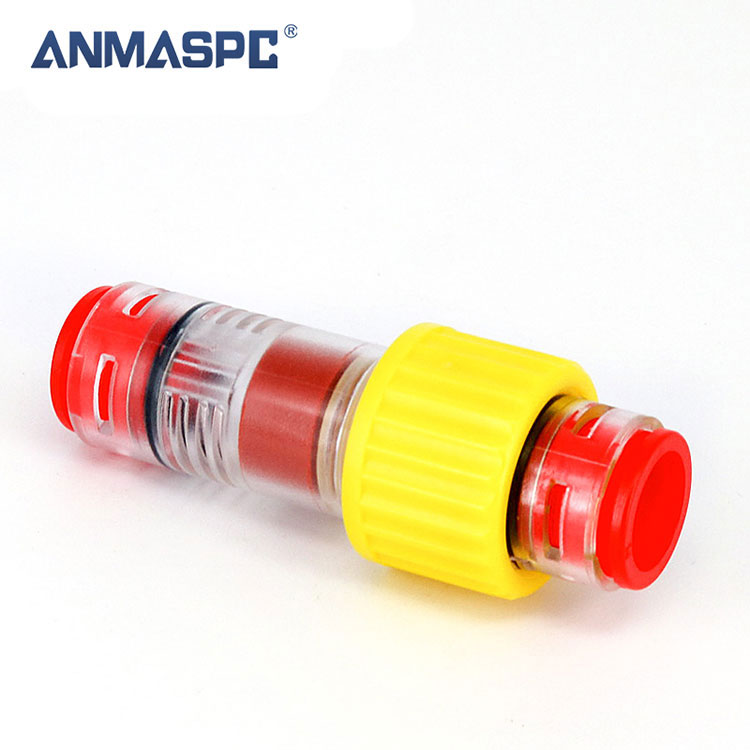

Waterproof Air Gas Blok Plastik HDPE Tube Banyu Lurus
konektor Micro-saluran nyediakake sambungan segel nyenyet gas sak kabel nang. Nalika dibukak, kabel bisa diunekake liwat konektor iki Lan nutup sesampunipun dening muter ring. Padha operate aman ing ndamu meksa saka 10 Bar Lan nglindhungi growong utama saka micro-ducts marang ingress sembarang partikel.Should diinstal tansah ing TCTerms transisi entri kanggo bangunan, ODFs etc. ngendi banyu utawa gas ngarsane iku prakara saka bebaya. Loro klip ngunci bisa dhawuh kanthi kapisah kanggo nyegah mikro-duktus dhewe release.
Fitur utama:
① Kasedhiya kanggo macem-macem ukuran saluran mikro OD 4–16
② Sistem push-fit
③ Badan transparan
④ Bahan awak: polikarbonat
⑤ Sealing: nganti 0,3 bar
⑥ Kemasan: tas
Katrangan
|
|
Komponen | ||
| 1 | Collet | POM | ||
| 2 | Klip Ngunci | POM | ||
| 3 | Kartrid | POM | ||
| 4 | Kunci Cakar | SUS301/304 | ||
| 5 | Dhukungan Ring | POM | ||
| 6 | O-ring | TEP | ||
| 7 | Konektor | POM | ||
| 8 | Lock nut | POM | ||
| 9 | awak | PC2807 | ||
| 10 | O-ring | TEP | ||
| 11 | Pad silikon | Karet silikon | ||
| Fit Tube | ||||
| Bahan pipa | HDPE, PE, Nylon, Polyurethane | |||
| Dhiameter njaba pipa | Φ3,Φ4,05,Φ6,07,08,Φ10,Φ12,Φ16,Φ18,Φ20 | |||
|
Parameter teknis |
||||
| Nggarap cairan | hawa | |||
| Kenceng | 0,15 ~ 0,8 MPa | |||
| Tes tarik | 400N | |||
| Tekanan bukti | 2,5 MPa | |||
| Range tekanan operasi | 0~1.6MPa | |||
| Suhu lingkungan lan suhu cairan | -40~60 ℃ | |||
| Derajat pangayoman | IP68 | |||
| Daya selipan | 50N maks (5kg) | |||
Tabel Artikel
| Kode ANMASPC | Pipa OD/ID | Pipa OD/ID | Range pamblokiran kabel |
| FZA5/3.5 | 5/3.5 | 5/3.5 | 0.9~2.5 |
| FZA 7/5.5 | 7/5.5 | 7/5.5 | 0.9~2.5 |
| FZA8/6 | 8/6 | 8/6 | 0.9~2.5 |
| FZA10/8 | 10/8 | 10/8 | 4~8 |
| FZA12/6 | 12/10 | 12/10 | 3~6 |
| FZA12/8 | 12/10 | 12/10 | 5~8 |
| FZA14/6 | 14/10 | 14/10 | 3~6 |
| FZA14/8 | 14/10 | 14/10 | 5~8 |
| FZA14/10 | 14/10 | 14/10 | 7~10 |
| FZA16/6 | 16/12 | 16/12 | 3~6 |
| FZA16/8 | 16/12 | 16/12 | 5~8 |
| FZA16/10 | 16/12 | 16/12 | 7~10 |
| FZA18/14 | 18/15 | 18/15 | 5~8 |
| FZA18/14 | 18/15 | 18/15 | 7~10 |
| FZA18/14 | 18/15 | 18/15 | 9~12 |
| FZA20/16 | 20/16 | 20/16 | 12~16 |
Spesifikasi teknis
| Model | FZA5 | FZA7 | FZA8 | FZA10 | FZA12 | FZA14 | FZA16 | FZA18 | FZA20 | |
| Medium Kerja | hawa | |||||||||
| Area maks. Bagean | 2.5 | 4.5 | 4.5 | 8 | 8 | 10 | 10 | 12 | 18 | |
| Tekanan Wroking | 1,8 Mpa | |||||||||
| Tekanan Bukti | 3.0Mpa | |||||||||
| Suhu | -5-70 ℃ (Ora beku) | |||||||||
| Bahan | awak | PC | ||||||||
| Cap | POM | |||||||||
| Lengan | POM | |||||||||
| Reed | 301 | |||||||||
| Gasket | POM | |||||||||
| Segel | EPDM | |||||||||
| Gesper | POM | |||||||||
