Deskripsi Produk

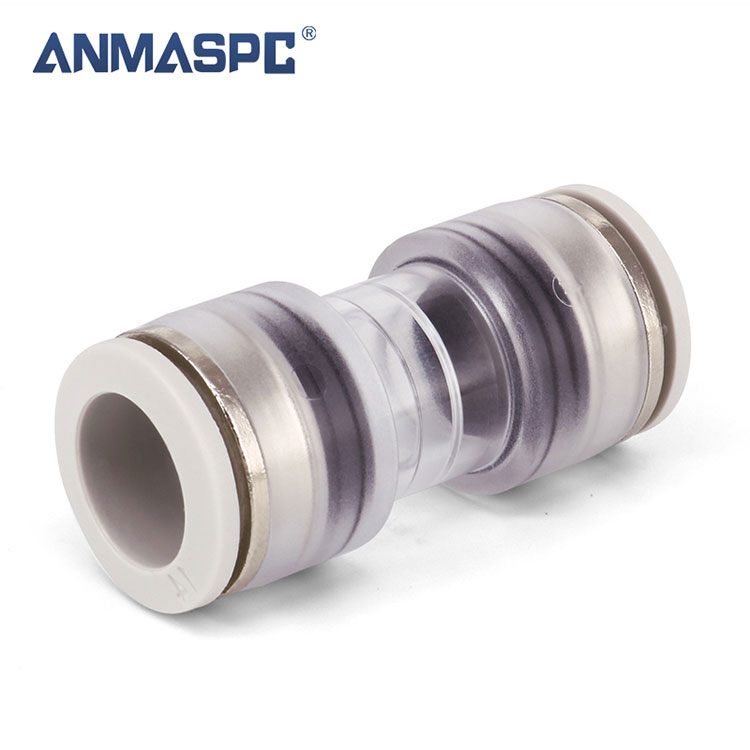

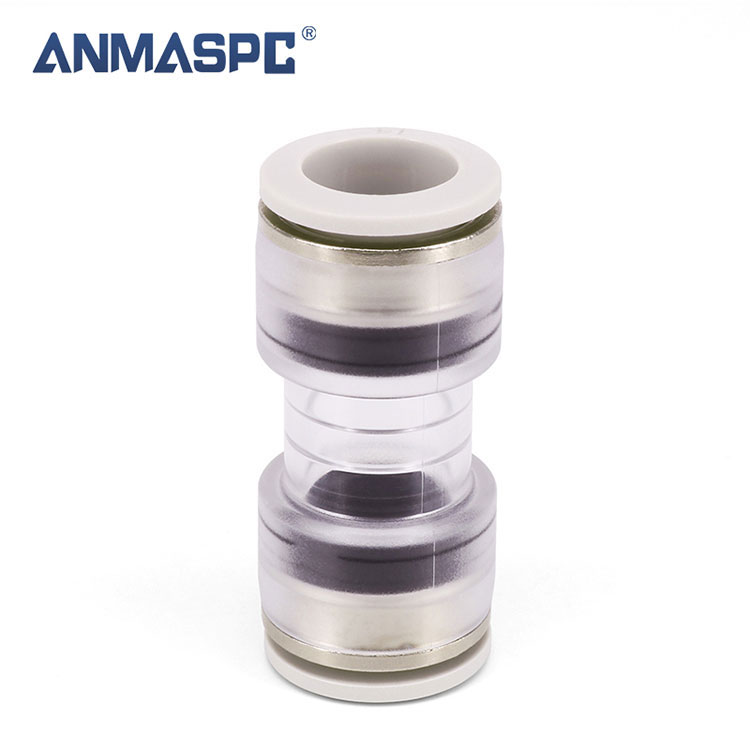

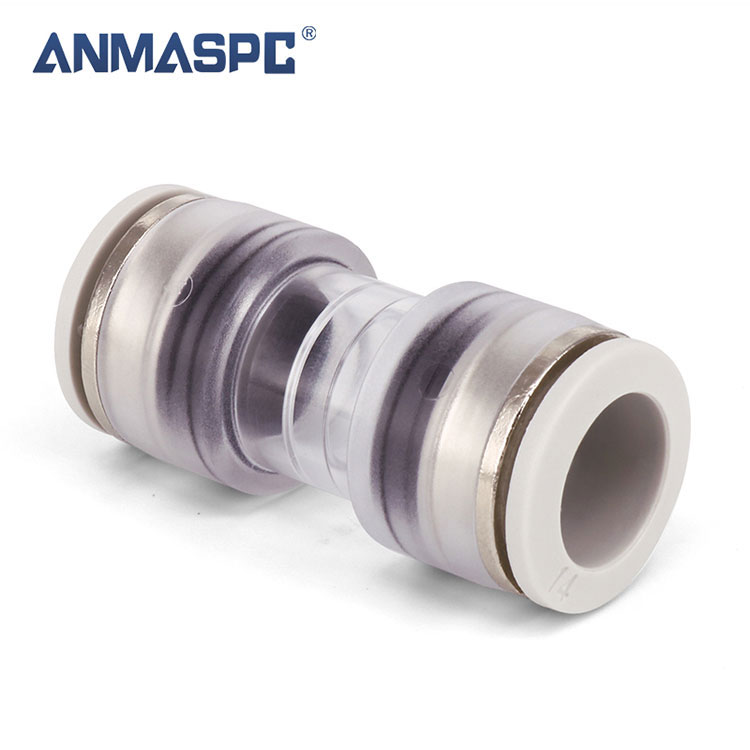

Konektor Lurus HDPE MicroDuct

Microduct konektor Lurus, kang njamin kinerja apik. Badan transparan ngidini verifikasi posisi saluran mikro ing njero. Klip safety, tamper jelas, wis diinstal. Diuji & tundhuk karo EN 50411-2-8.

FITUR UTAMA:

① Klip safety klebu

② Teknologi push-fit

③ Tekanan Kerja: maks. 25 bar

Katrangan

		Komponen
		1	Collet	POM
		2	Klip Ngunci	POM
		3	Kartrid	POM
		4	Kunci Cakar	SUS301/304
		5	Dhukungan Ring	POM
		6	Ring Segel	TEP
		7	awak	PC2807
Fit Tube
Bahan pipa	HDPE, PE, Nylon, Polyurethane
Dhiameter njaba pipa	Φ3,Φ4,Φ5,Φ6,Φ7,Φ8,Φ10,Φ12,Φ16,Φ18,Φ20

Tabel Artikel

Kode ANMASPC	Pipa OD/ID	Pipa OD/ID	bolongan tapered
TPU3/2.1	3/2.1	3/2.1	2.1
TPU 4/2.5	4/2.5	4/2.5	2.5
TPU4/2.8	4/2.8	4/2.8	2.8
TPU5/2.1	5/2.1	5/2.1	2.1
TPU 5/3.5	5/3.5	5/3.5	3.5
TPU6/4	6/4	6/4	4
TPU 7/3.5	7/3.5	7/3.5	3.5
TPU7/4	7/4	7/4	4
TPU 7/5.5	7/5.5	7/5.5	5.5
TPU 8/3.5	8/3.5	8/3.5	3.5
TPU8/6	8/6	8/6	6
TPU 10/6	10/6	10/6	6
TPU 10/8	10/8	10/8	8
TPU 12/8	12/8	12/8	8
TPU 12/10	12/10	12/10	10
TPU 14/10	14/10	14/10	10
TPU 14/12	14/12	14/12	12
TPU 16/12	16/12	16/12	12
TPU 16/13	16/13	16/13	13
TPU 16/14	16/14	16/14	14
TPU 18/15	18/15	18/15	15
TPU 20/14	20/14	20/14	14
TPU 20/15	20/15	20/15	15
TPU 20/16	20/16	20/16	16

Sakabèhé Dimensi

Kode ANMASPC	A	B	C	D	E	F
TPU3	28.8	5.5	8	8.3	3.2	2.1
TPU5	36.5	8	10.7	11.6	5.2	2-3.5
TPU7	38.8	10.9	13.4	14.7	7.3	3.5-4-5.5
TPU9	38.8	11	13.4	14.7	6.3	3.5-6
TPU 10	43	12.9	15.6	16.5	10.3	6-8
TPU 12	47	14.7	17.5	19.1	12.4	8-10
TPU 14	49.8	16.9	20	21.1	14.5	10-12
TPU 16	55.2	19	23	23.7	16.5	12-14
TPU 18	69	22.5	27.5	29	18.5	14
TPU 20	83.4	25.5	32.1	33.5	20.6	14-16-18
