Deskripsi Produk

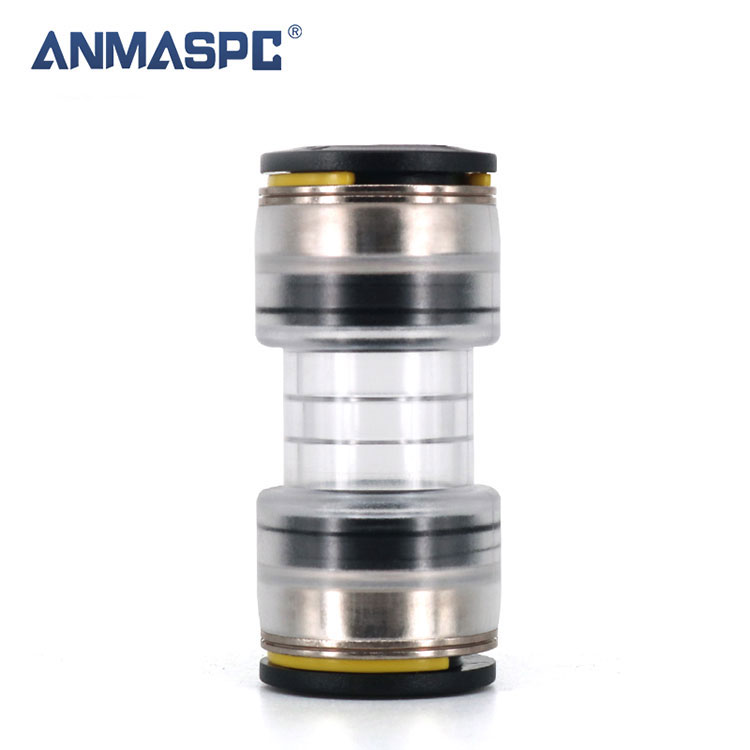

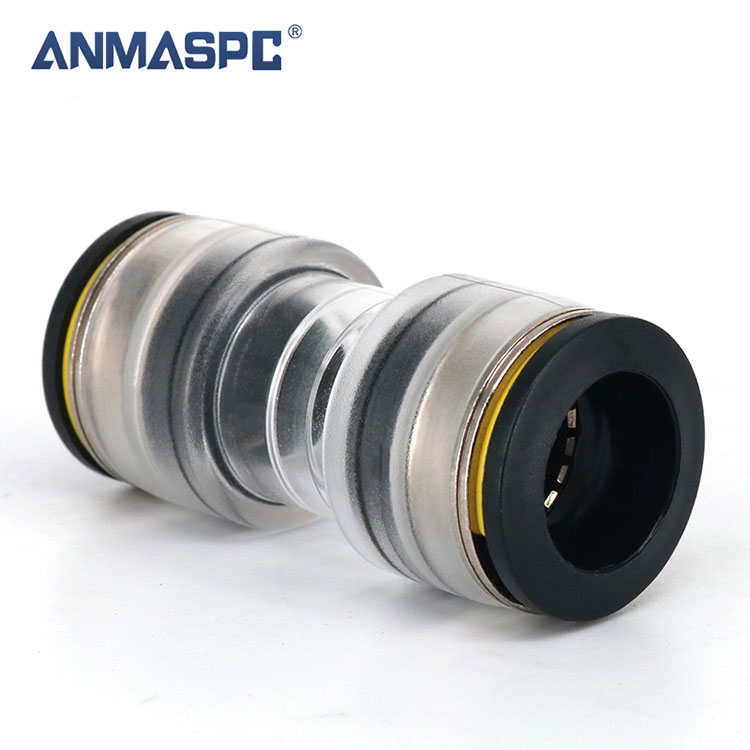

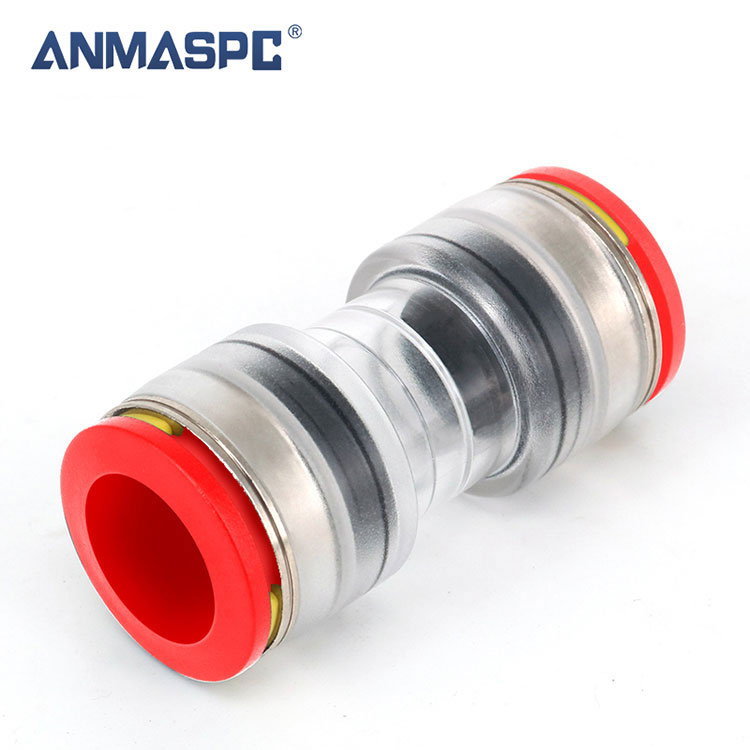

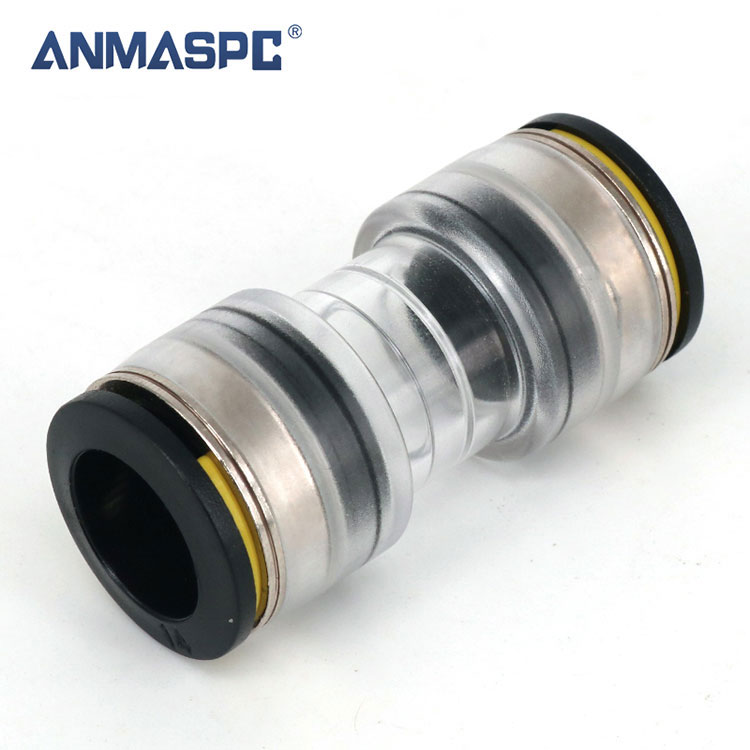

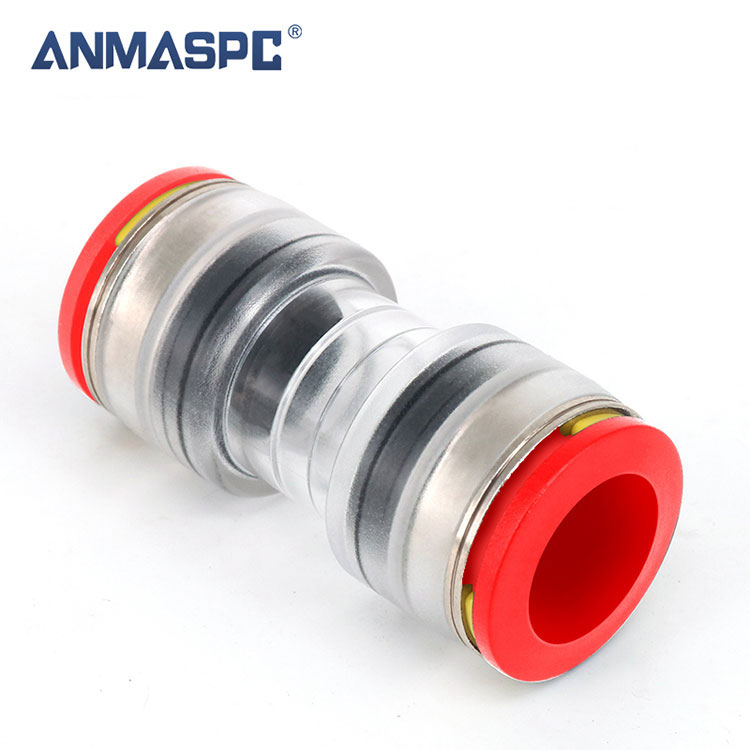

Aksesoris Konektor Microduct Lurus Alloy Seng

Microduct konektor Lurus, kang njamin kinerja apik. Badan transparan ngidini verifikasi posisi saluran mikro ing njero. Klip safety, tamper jelas, wis diinstal. Diuji & tundhuk karo EN 50411-2-8.

FITUR UTAMA:

① Klip safety klebu

② Teknologi push-fit

③ Tekanan Kerja: maks. 25 bar

Katrangan

			Komponen
			1	Collet	POM
			2	Klip Ngunci	POM
			3	Kartrid	PADUAN ZINK
			4	Kunci Cakar	SUS301/304
			5	Dhukungan Ring	POM
			6	Ring Segel	TEP
			7	awak	PC2807
Fit Tube
Bahan pipa	HDPE.PE.Nylon.Polyurethane
Dhiameter njaba pipa	Φ3,Φ4,Φ5,Φ6,Φ7,Φ8,Φ10,Φ12,Φ14,Φ16
Parameter teknis
Nggarap cairan		hawa
Kenceng		0.15~0.8MPa Ora Bocor
Tarik fest		400N
Tekanan bukti		2,5 MPa
Range tekanan operasi		0~1.6MPa
Suhu lingkungan lan suhu cairan		-40~60 ℃
Suhu Instalasi		-10 ℃ / + 50 ℃
Dianjurake Suhu Ngibul		-15 ℃ / + 35 ℃
Derajat pangayoman		IP68
Kelas tahan UV		F1
Daya selipan		50N maks (5kg)
Umur:		25 taun
Standar:		EN 50411-2-8

Spesifikasi lan Ukuran

Kode ANMASPC	Pipa OD/ID	Pipa OD/ID	Tapered hole
TPU3/2.1	3/2.1	3/2.1	2.1
TPU 4/2.5	4/2.5	4/2.5	2.5
TPU4/2.8	4/2.8	4/2.8	2.8
TPU5/2.1	5/2.1	5/2.1	2.1
TPU 5/3.5	5/3.5	5/3.5	3.5
TPU6/4	6/4	6/4	4
TPU 7/3.5	7/3.5	7/3.5	3.5
TPU7/4	7/4	7/4	4
TPU 7/5.5	7/5.5	7/5.5	5.5
TPU 8/3.5	8/3.5	8/3.5	3.5
TPU8/6	8/6	8/6	6
TPU 10/6	10/6	10/6	6
TPU 10/8	10/8	10/8	8
TPU 12/8	12/8	12/8	8
TPU 12/10	12/10	12/10	10
TPU 14/10	14/10	14/10	10
TPU 14/12	14/12	14/12	12
TPU 16/12	16/12	16/12	12
TPU 16/13	16/13	16/13	13
TPU 16/14	16/14	16/14	14

Sakabèhé Dimensi


Model	A	B	C	D	E	F
TPU03	31.9	6.9	10	11.1	3.2	2.1
TPU04	31.9	6.9	10	11.1	4.2	2.8/2.5
TPU05	35.4	8.9	12	12.8	5.2	3.5/2.1
TPU06	35.4	8.9	12	12.8	6.2	4.0
TPU07	41.0	11.5	14.1	15.4	7.2	5.5/4/3.5
TPU08	41.0	11.5	14.1	15.4	8.2	6/3.5
TPU 10	42.0	14.0	17.5	18.3	10.2	08/06
TPU 12	49.5	15.8	19.2	20.7	12.2	10/08
TPU 14	50.5	18.0	22.2	23	14.3	12/10
TPU 16	55.0	20.0	24.7	25.1	16.2	14/13/12
