Ngarep > Produk > Konektor Microduct > Konektor Reducer Microduct > HDPE Lurus Microduct Coupling Reducer
Deskripsi Produk

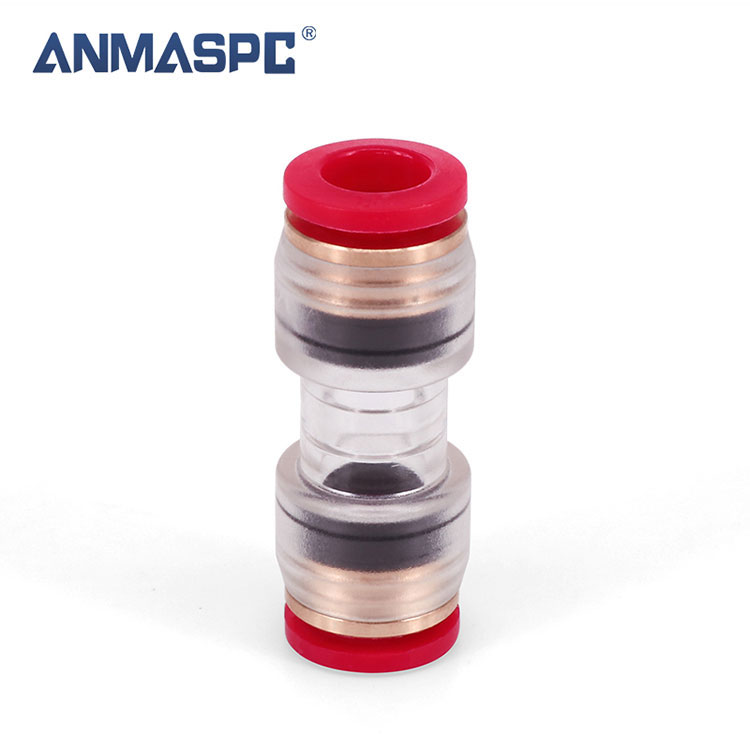

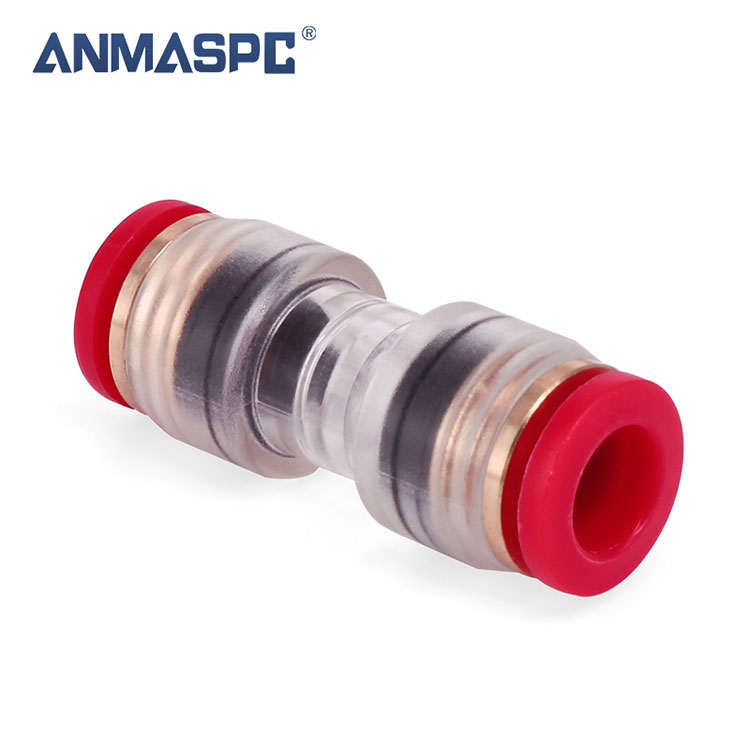

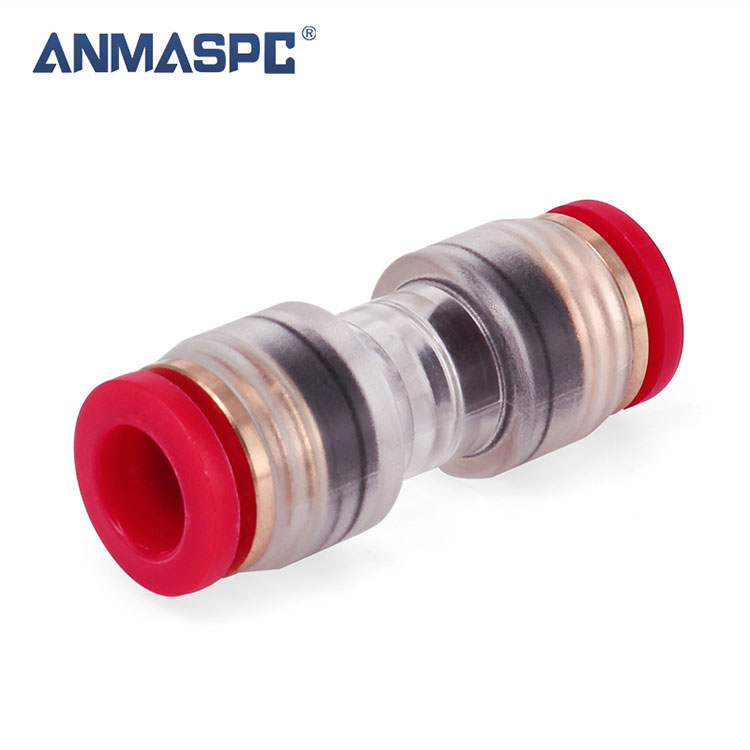

HDPE Straight Microduct Coupling Reducer Konektor Kanggo Firber OpticTube
Microduct konektor Lurus, kang njamin kinerja apik. Badan transparan ngidini verifikasi posisi saluran mikro ing njero. Klip safety, tamper jelas, wis diinstal. Diuji & tundhuk karo EN 50411-2-8.
FITUR UTAMA:
① Klip safety klebu
② Teknologi push-fit
③ Tekanan Kerja: maks. 25 bar
Katrangan
|
|
Komponen | ||||
| 1 | Collet | POM | ||||
| 2 | Klip Ngunci | POM | ||||
| 3 | Kartrid | PADUAN ZINK | ||||
| 4 | Kunci Cakar | SUS301/304 | ||||
| 5 | Dhukungan Ring | POM | ||||
| 6 | Ring Segel | TEP | ||||
| 7 | awak | PC2807 | ||||
| Fit Tube | ||||||
| Bahan pipa | HDPE.PE.Nylon.Polyurethane | |||||
| Dhiameter njaba pipa | Φ3,Φ4,Φ5,Φ6,Φ7,Φ8,Φ10,Φ12,Φ14,Φ16 | |||||
| Parameter teknis | ||||||
| Nggarap cairan | hawa | |||||
| Kenceng | 0.15~0.8MPa Ora Bocor | |||||
| Tarik fest | 400N | |||||
| Tekanan bukti | 2,5 MPa | |||||
| Range tekanan operasi | 0~1.6MPa | |||||
| Suhu lingkungan lan suhu cairan | -40~60 ℃ | |||||
| Suhu Instalasi | -10 ℃ / + 50 ℃ | |||||
| Dianjurake Suhu Ngibul | -15 ℃ / + 35 ℃ | |||||
| Derajat pangayoman | IP68 | |||||
| Kelas tahan UV | F1 | |||||
| Daya selipan | 50N maks (5kg) | |||||
| Umur: | 25 taun | |||||
| Standar: | EN 50411-2-8 | |||||
Spesifikasi lan Ukuran
| Kode ANMASPC | Pipa OD/ID | Pipa OD/ID | bolongan tapered |
| TPU3/2.1 | 3/2.1 | 3/2.1 | 2.1 |
| TPU 4/2.5 | 4/2.5 | 4/2.5 | 2.5 |
| TPU4/2.8 | 4/2.8 | 4/2.8 | 2.8 |
| TPU5/2.1 | 5/2.1 | 5/2.1 | 2.1 |
| TPU 5/3.5 | 5/3.5 | 5/3.5 | 3.5 |
| TPU6/4 | 6/4 | 6/4 | 4 |
| TPU 7/3.5 | 7/3.5 | 7/3.5 | 3.5 |
| TPU7/4 | 7/4 | 7/4 | 4 |
| TPU 7/5.5 | 7/5.5 | 7/5.5 | 5.5 |
| TPU 8/3.5 | 8/3.5 | 8/3.5 | 3.5 |
| TPU8/6 | 8/6 | 8/6 | 6 |
| TPU 10/6 | 10/6 | 10/6 | 6 |
| TPU 10/8 | 10/8 | 10/8 | 8 |
| TPU 12/8 | 12/8 | 12/8 | 8 |
| TPU 12/10 | 12/10 | 12/10 | 10 |
| TPU 14/10 | 14/10 | 14/10 | 10 |
| TPU 14/12 | 14/12 | 14/12 | 12 |
| TPU 16/12 | 16/12 | 16/12 | 12 |
| TPU 16/13 | 16/13 | 16/13 | 13 |
| TPU 16/14 | 16/14 | 16/14 | 14 |
Sakabèhé Dimensi
| Model | A | B | C | D | E | F |
| TPU03 | 31.9 | 6.9 | 10 | 11.1 | 3.2 | 2.1 |
| TPU04 | 31.9 | 6.9 | 10 | 11.1 | 4.2 | 2.8/2.5 |
| TPU05 | 35.4 | 8.9 | 12 | 12.8 | 5.2 | 3.5/2.1 |
| TPU06 | 35.4 | 8.9 | 12 | 12.8 | 6.2 | 4.0 |
| TPU07 | 41.0 | 11.5 | 14.1 | 15.4 | 7.2 | 5.5/4/3.5 |
| TPU08 | 41.0 | 11.5 | 14.1 | 15.4 | 8.2 | 6/3.5 |
| TPU 10 | 42.0 | 14.0 | 17.5 | 18.3 | 10.2 | 08/06 |
| TPU 12 | 49.5 | 15.8 | 19.2 | 20.7 | 12.2 | 10/08 |
| TPU 14 | 50.5 | 18.0 | 22.2 | 23 | 14.3 | 12/10 |
| TPU 16 | 55.0 | 20.0 | 24.7 | 25.1 | 16.2 | 14/13/12 |
