Deskripsi Produk

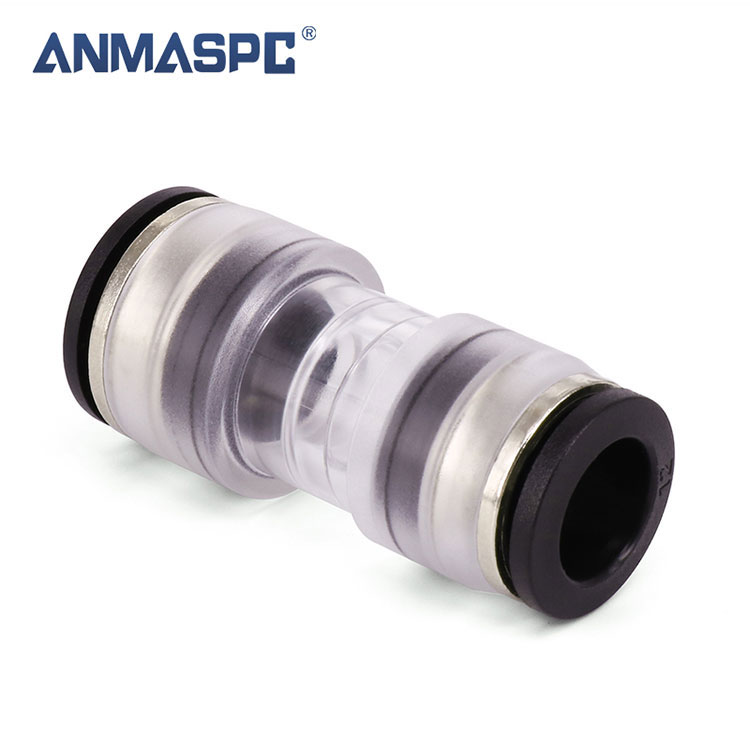

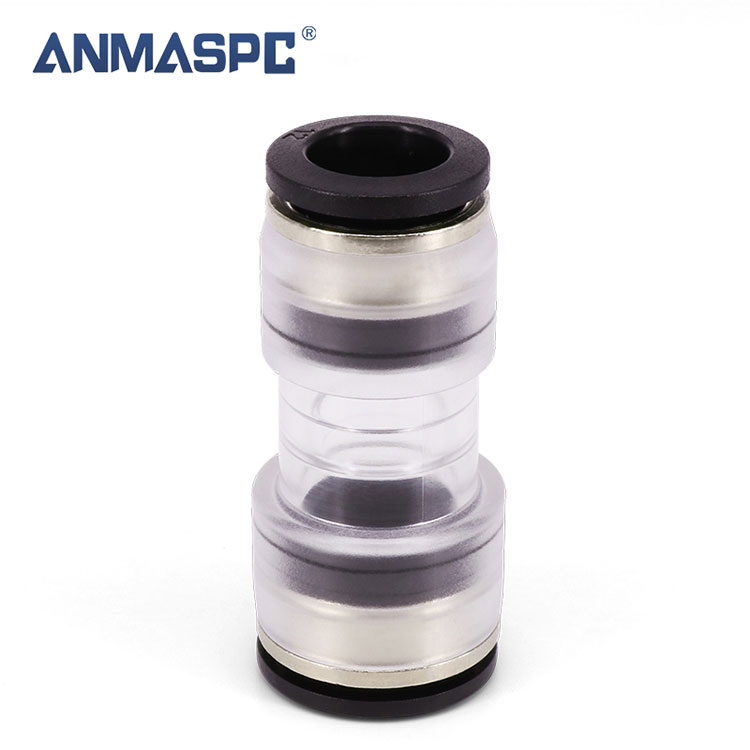

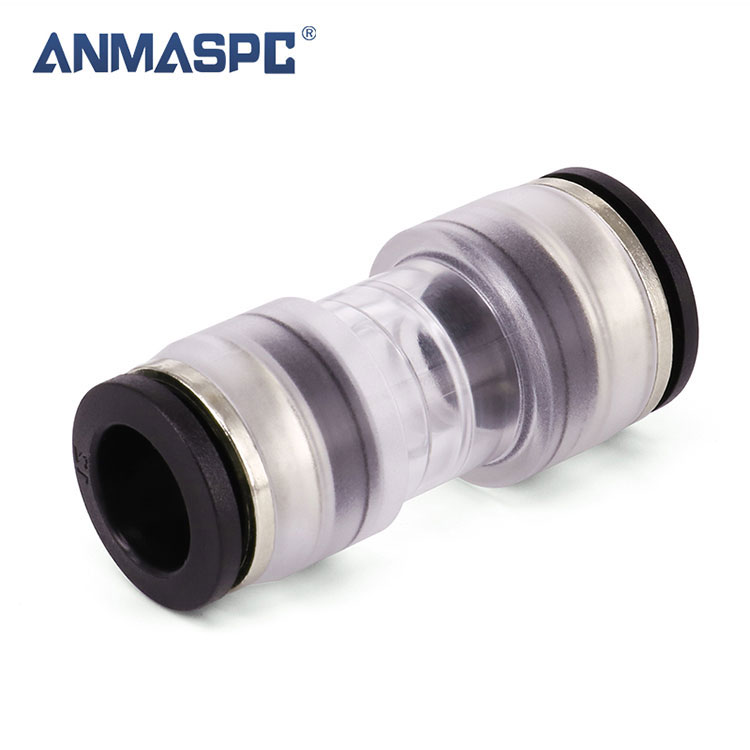

Seng Alloy Transparan Microduct Reducer Konektor Coupler Clear Body

Pengurangan konektor ngidini interkoneksi antarane rong saluran mikro kanthi diameter njaba sing beda. Biasane iki kasus titik transisi saka DB menyang DI mikro-saluran mlebu omah. Yen sampeyan durung nemokake ukuran sing bener ing antarane METAL FREE utawa REINFORCED, pilih salah siji saka iki.

FITUR UTAMA:

① Klip safety klebu

② Teknologi push-fit

③ Tekanan Kerja: maks. 25 bar

Katrangan

			Komponen
			1	Collet	POM
			2	Klip Ngunci	POM
			3	Kartrid	PADUAN ZINK
			4	Kunci Cakar	SUS301/304
			5	Dhukungan Ring	POM
			6	Ring Segel	TEP
			7	awak	PC2807
Fit Tube
Pipe matenial	HDPE, PE, Nylon, Polyurethane
Diameter njaba pipa	Φ3,Φ4,Φ5,Φ6,Φ7,Φ8,Φ10,Φ12,Φ14,Φ16
Parameter teknis
Nggarap cairan		hawa
Kenceng		0.15~0.8MPa Ora Bocor
Tes tarik		400N
Tekanan bukti		2,5 MPa
Range tekanan operasi		0~1.6MPa
Suhu lingkungan lan suhu cairan		-40~60 ℃
Suhu Instalasi		-10 ℃ / + 50 ℃
Dianjurake Suhu Ngibul		-15 ℃ / + 35 ℃
Derajat pangayoman		IP68
Kelas tahan UV		F1
Daya selipan		50N maks (5kg)
Umur:		25 taun
Standar:		EN 50411-2-8

TABEL ARTIKEL

Kode ANMASPC	Pipa OD/ID	Pipa OD/ID	bolongan tapered
TPG5-3/2.1	5/3.5	3/2.1	3.5> 2.1
TPG5-4/2.8	5/3.5	4/2.8	3.5> 2.8
TPG7-3/2.1	7/5.5	3/2.1	5.5> 2.1
TPG7-4/2.8	7/5.5	4/2.8	5.5> 2.8
TPG7-5/3.5	7/5.5	5/3.5	5.5> 3.5
TPG8-3/2.1	8/6	3/2.1	6>2.1
TPG8-5/3.5	8/6	5/3.5	6> 3.5
TPG8-7/5.5	8/6	7/5.5	6>5.5
TPG10-5/3.5	10/8	5/3.5	8> 3.5
TPG10-7/5.5	10/8	7/5.5	8>5.5
TPG10-8/6	10/8	8/6	8>6
TPG12-7/5.5	12/10	7/5.5	10>5.5
TPG12-8/6	12/10	8/6	10>6
TPG12-10/8	12/10	10/8	10>8
TPG14-10/8	14/12	10/8	12> 8
TPG14-12/10	14/12	12/10	12> 10
TPG16-10/8	16/13	10/8	13>8
TPG16-12/10	16/13	12/10	13> 10

Sakabèhé Dimensi

Model	A	B	C	D	EC	ED	EA	EB	F
TPG5-3	33.6	6.1	10.0	11.1	12.0	12.8	3.2	5.2	2.3
TPG7-3	36.4	6.1	10.0	11.1	4.1	154.0	3.2	72	2.3
TPG8-3	36.4	6.1	10.0	11.1	14.1	15.4	3.2	8.2	2.3
TPG7-5	38.2	7.6	12.0	12.8	14.1	15.4	5.3	72	3.7
TPG8-5	38.2	7.6	12.0	12.8	14.1	15.4	5.3	8.2	3.7
TPG10-7	41.5	9.0	14.1	15.4	17.5	18.3	7.3	10.3	5.7
TPG10-8	41.5	9.5	14.1	15.4	17.5	18.3	8.2	10.3	6.3
TPG12-8	45.3	9.5	19.2	15.4	19.2	20.7	8.2	12.3	6.3
TPG12-10	47.3	15.8	17.5	18.7	19.2	20.7	10.3	12.3	8.3
TPG14-10	50.3	14.0	17.5	18.4	22.2	23.0	10.3	14.3	8.3
TPG14-12	50.6	18.0	19.2	20.7	22.2	23.0	12.3	14.3	10.3
TPG16-10	48.5	14.0	17.5	18.7	24.7	25.1	10.3	16.2	8.3
TPG16-12	52.3	18.0	19.2	20.7	24.7	25.1	12.3	16.2	10.3
